Vitacci

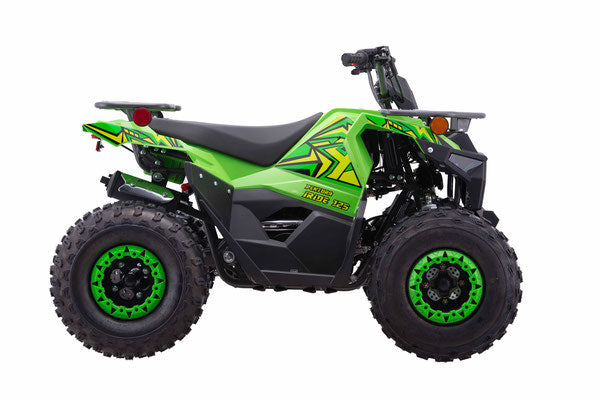

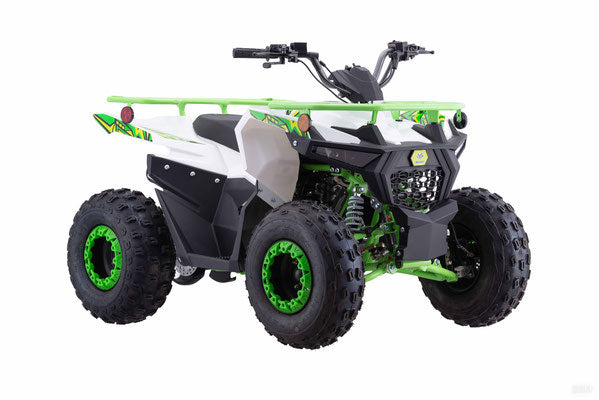

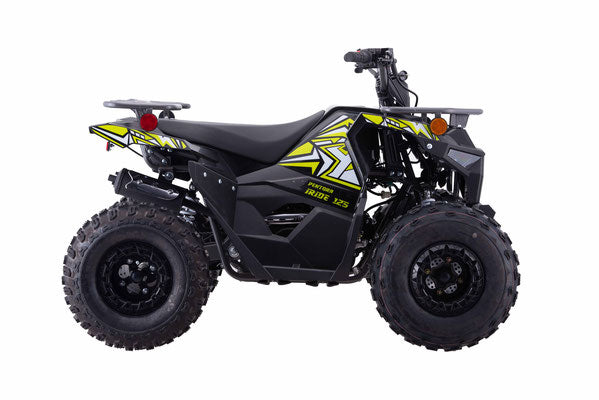

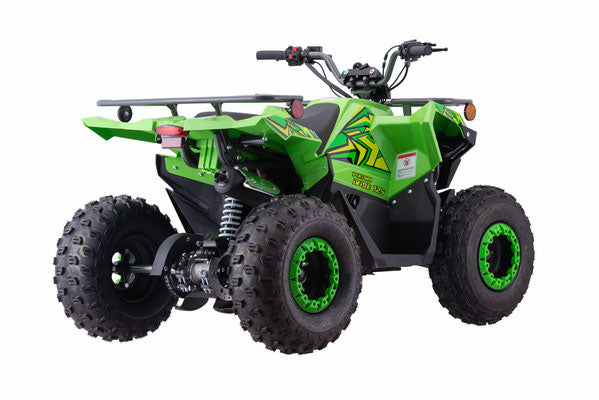

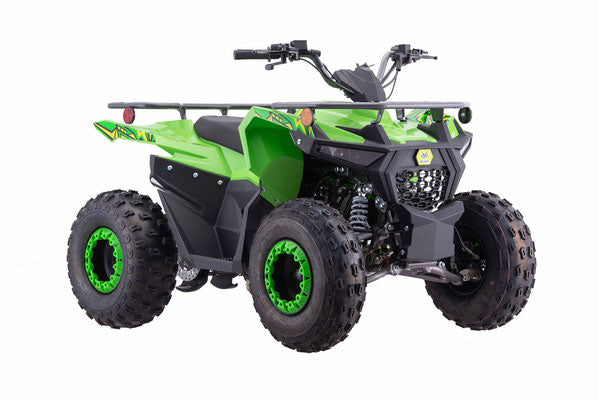

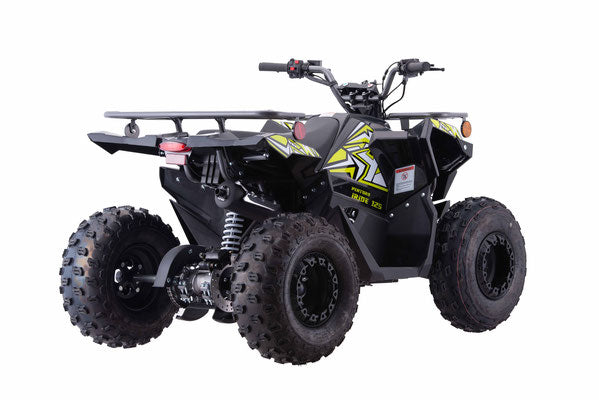

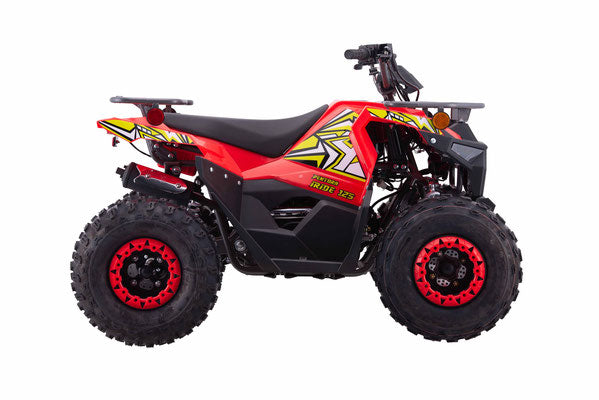

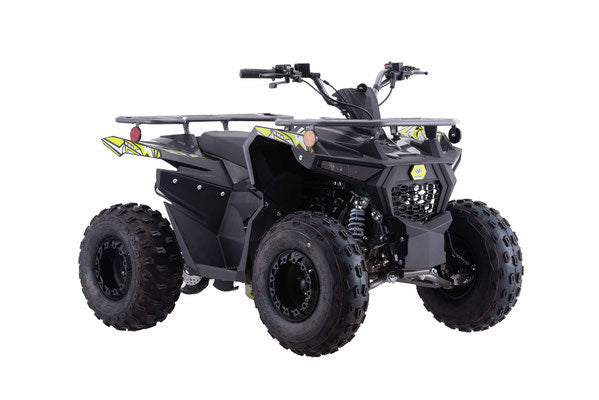

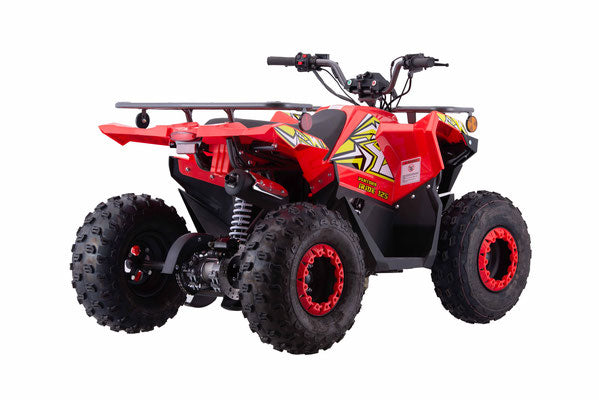

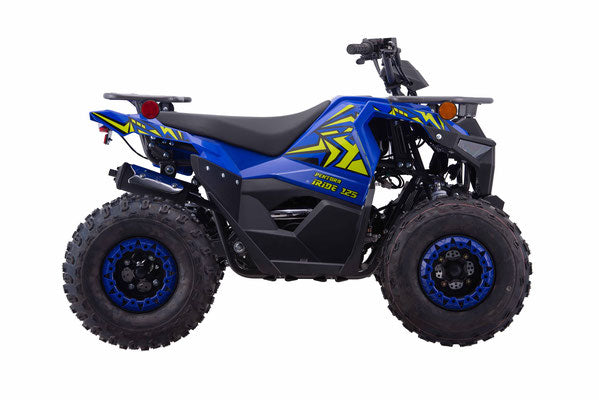

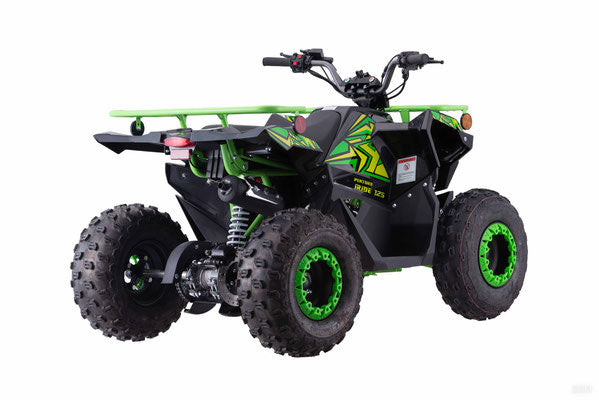

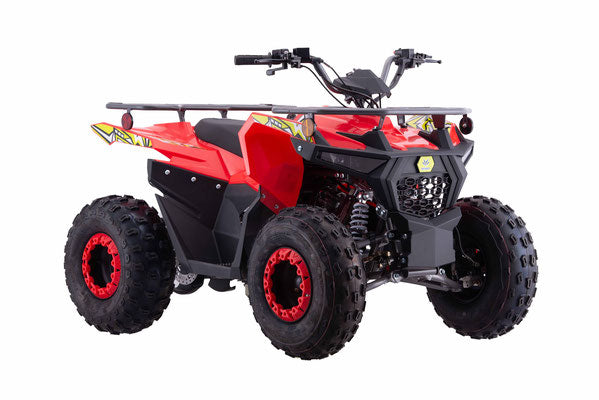

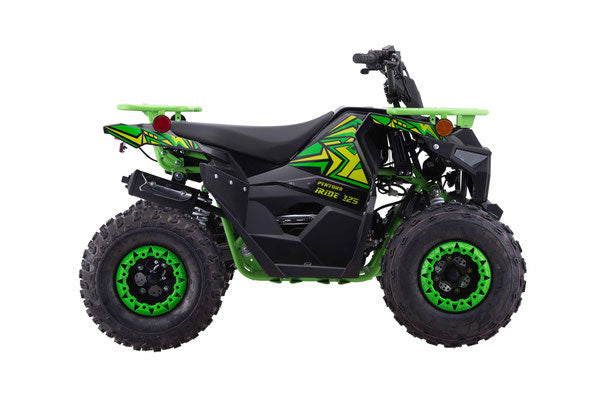

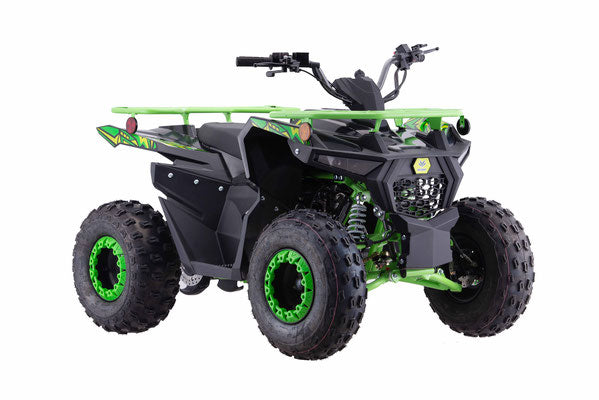

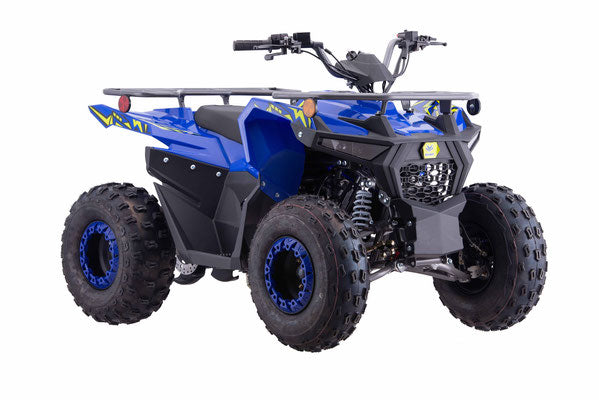

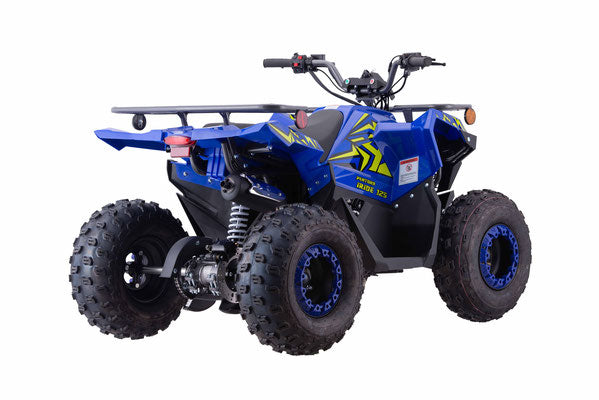

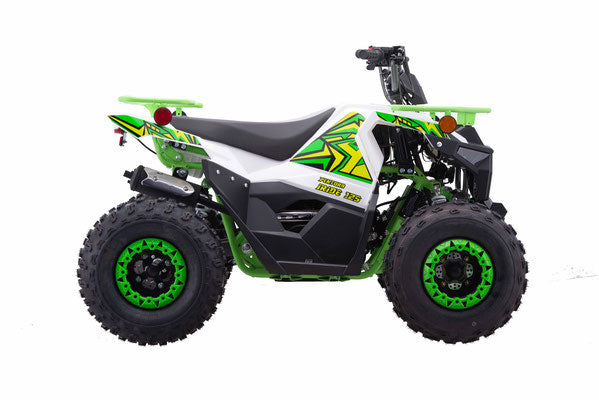

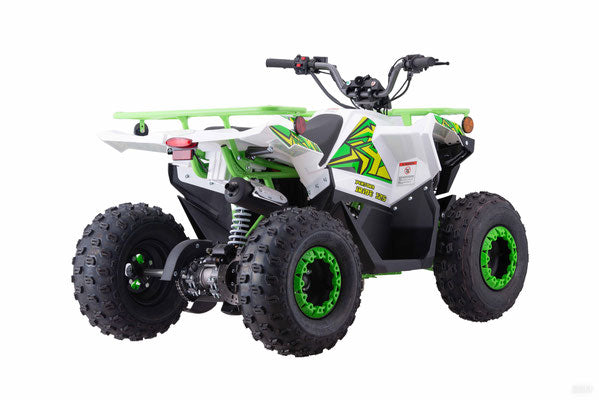

Pentora 125cc ATV

$1,095.00 USD

~~$1,999.00 USD~~ $1,095.00 USD

Sale Sold out

Body color: Green

Quantity

The Pentora 125cc ATV is perfect for youth riders looking for a fun and thrilling experience. With both forward and reverse capabilities, this ATV offers versatility and excitement on the trails. Get ready to take your riding to the next level with the Pentora 125cc ATV.

ITEMS	SPEC
Engine Mode	ZS154FMI-5
Engine Type	Single cylinder,4-stroke,air-cooling, camshaft upward, with balance shaft，tilting (10°leaned)
Displacement(ml)	123.67
Max.Power(kw/r/min)	〔6.3（1±10%）〕/〔7500（1±5%）〕
Max.Torque (N.m/r/min)	〔8.8（1±10%）〕/〔5500（1±5%）〕
Compression Ratio	9.0:1
Bore and Stroke(mm×mm)	54×54
Ignition method	CDI
Lubrication method	Pressure and Splash
lubricating oil	15W/40-SE（-10TO 40℃） HQB-10（<-10℃）
Starting method	E-START
Clutch method	Automatic Wet Multi-Plate
Gearshift Method	Constant mesh, two-stage transmission, Automatic (Forward, Neutral, Reverse)
TRANSMISSION	chain
spark	A7RTC
atv size	1430×965×950
Wheelbase mm	970±20mm
wheels distance mm	front 750±15mm/ rear 760±15mm
seat height mm	700±15mm
clearance mm	180
Minimum turning circle radius mm	2500±500mm
sprocket	front 428-14; rear ：428-42
brake	fr & rear disc brake
brake method	front and rear hand brake
rim	front and rear 8 inch
tyre	front：18×7-8/rear ：18×9-8
front suspension	oil dumper/270mm
rear suspension	oil dumper/285mm
height from foot padel to seat mm	445±15mm
front light	2-12V/25W
tail light	LED
turning light	/
carb	PZ19
oil tank	7L
frame	Double beam welded frame
rear swing arm	Tube and plate structure
max loading kg	82
N W kg	109
G W kg	131
packing	steel frame+carton
packing size	1310×850×650
loading qty	92pcs/40QH

Low stock: 2 left
