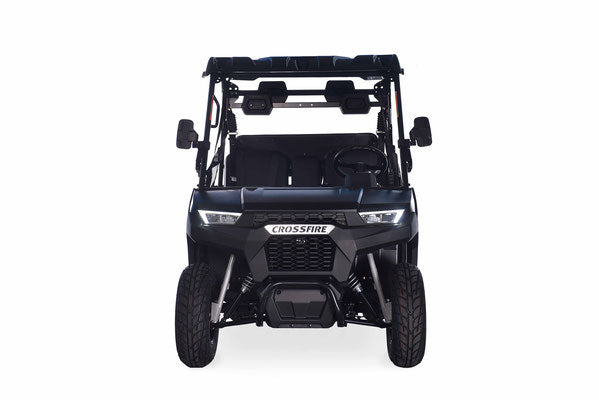

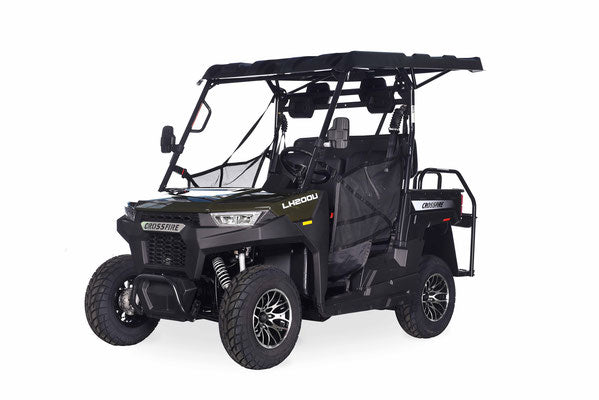

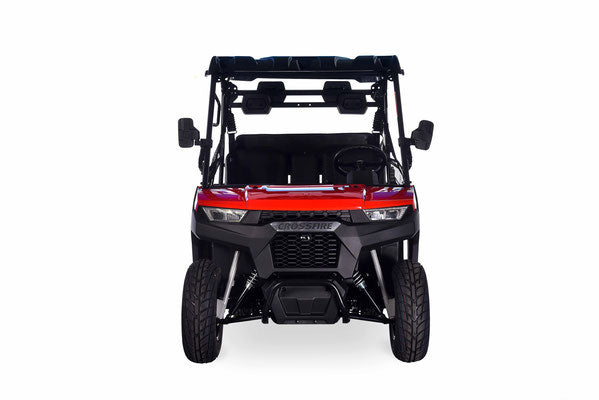

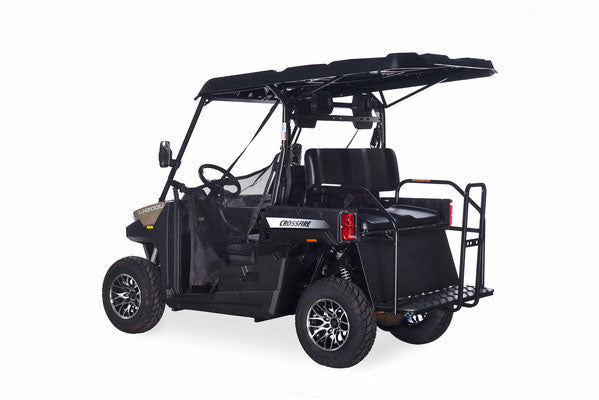

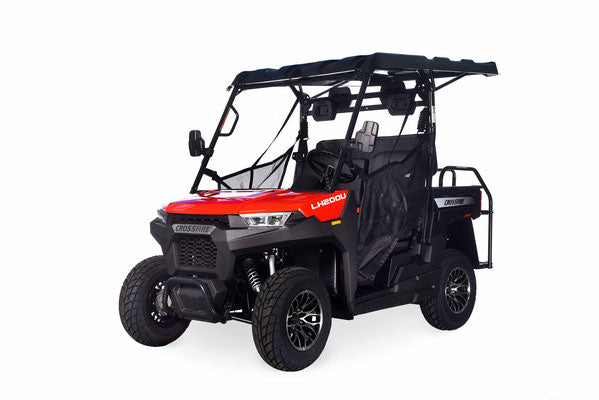

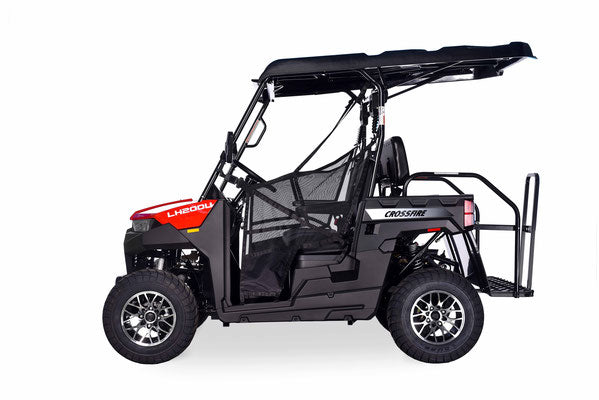

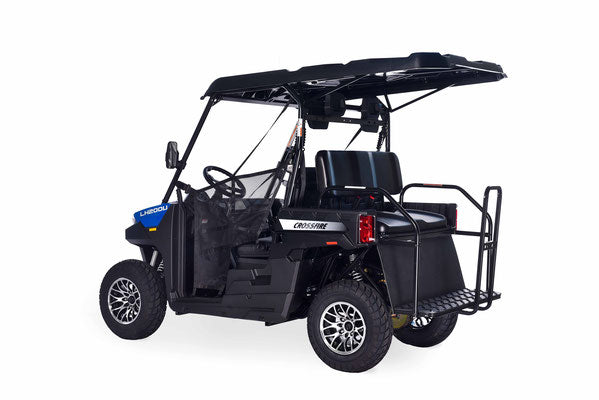

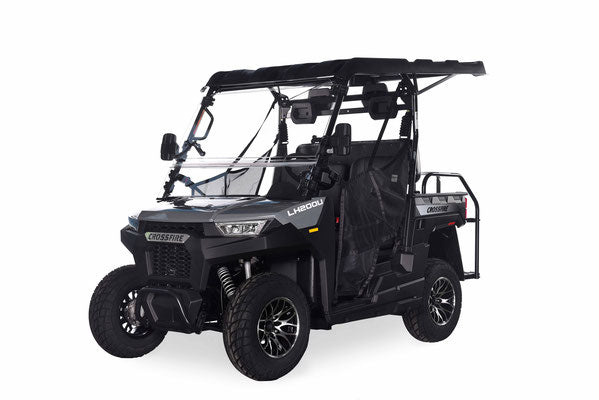

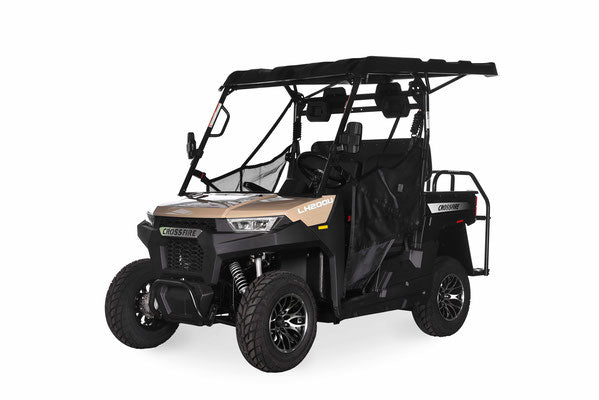

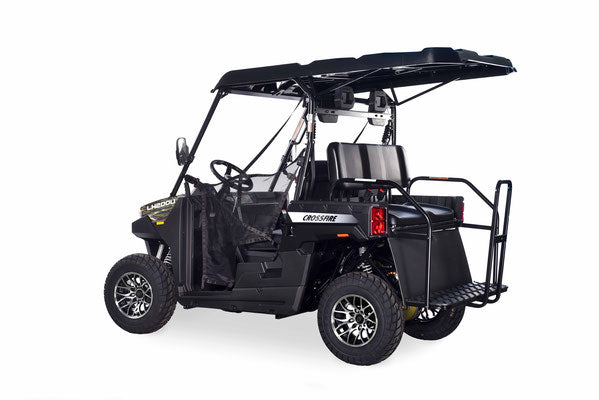

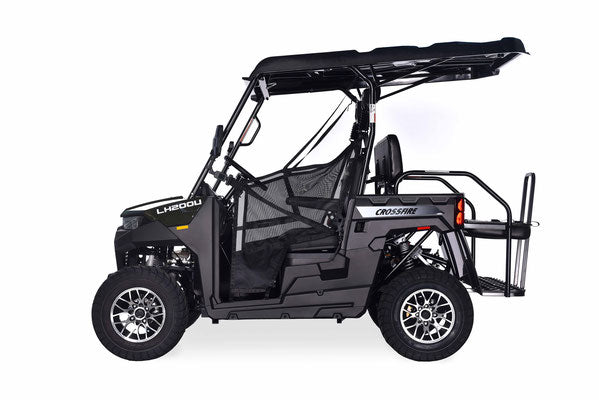

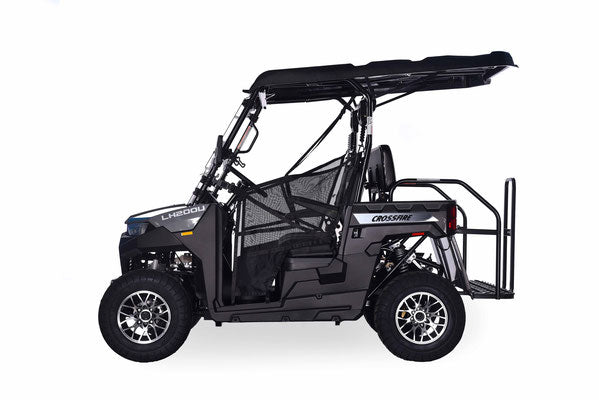

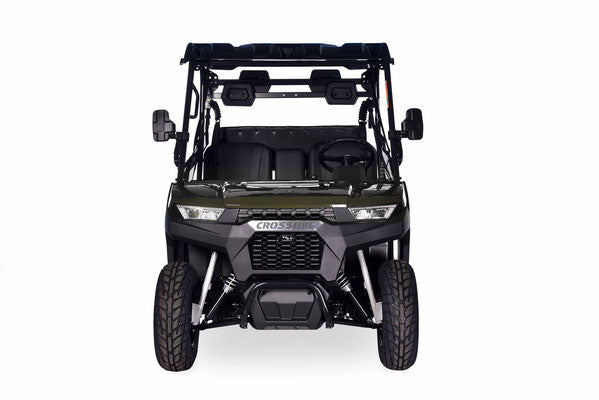

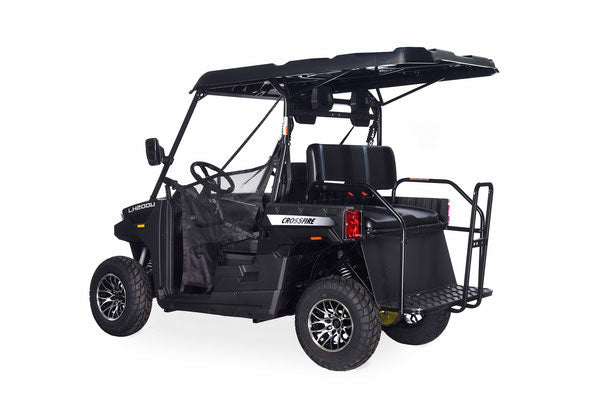

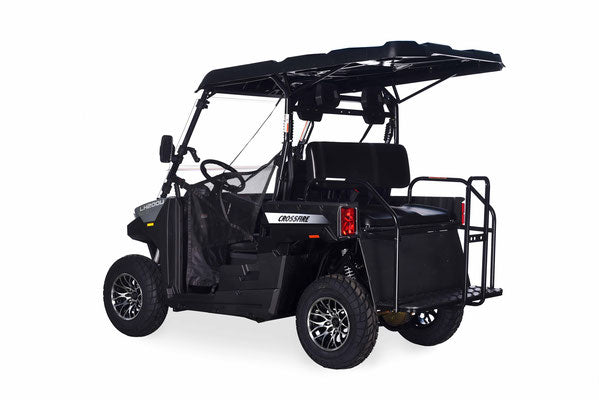

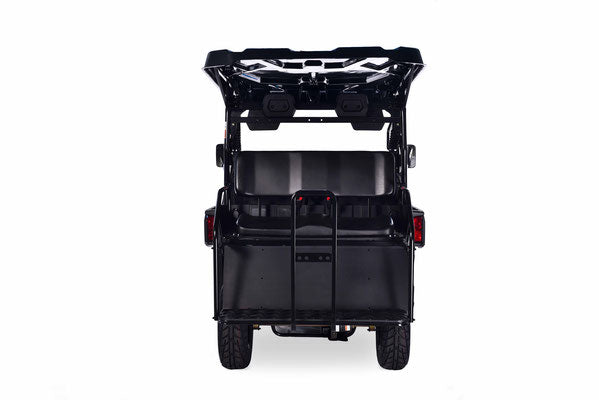

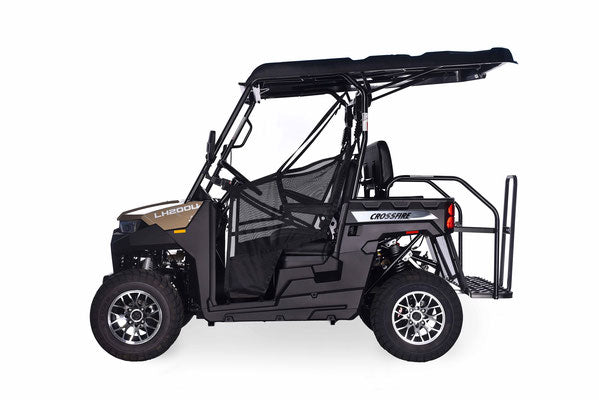

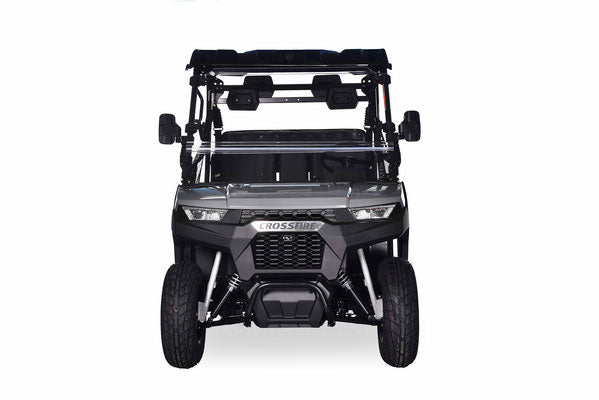

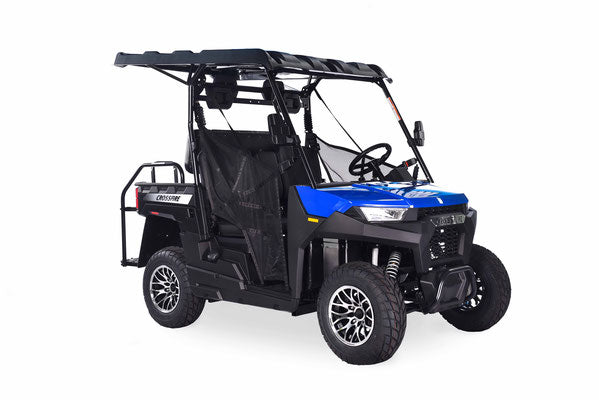

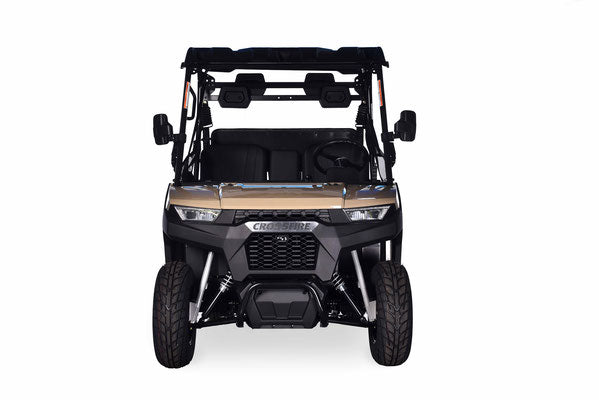

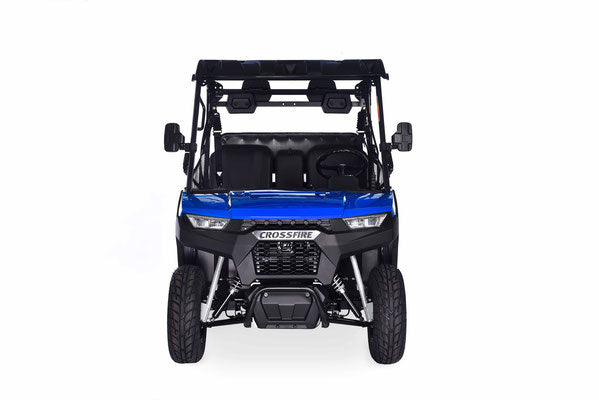

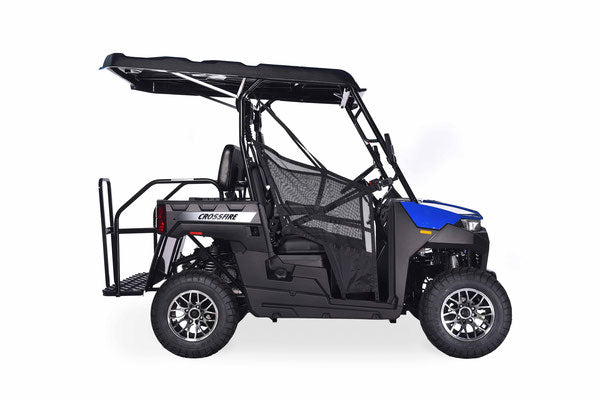

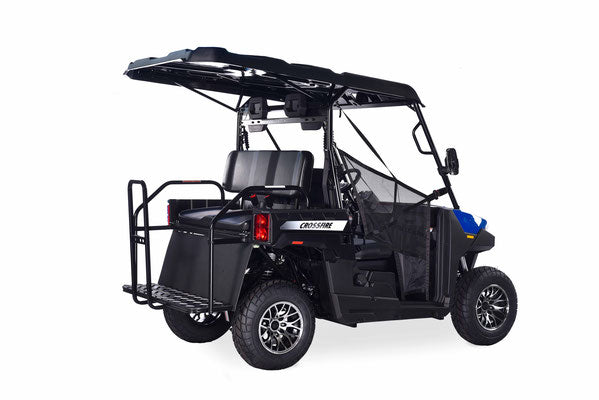

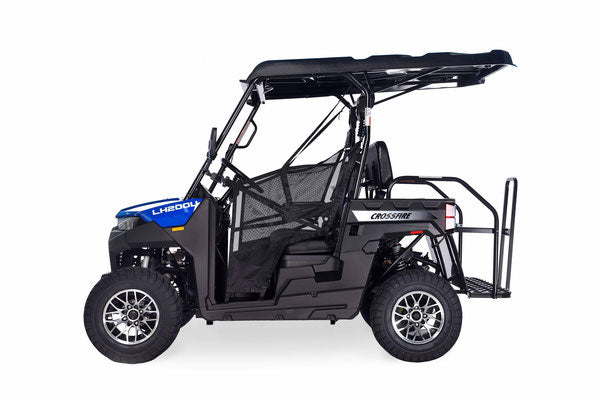

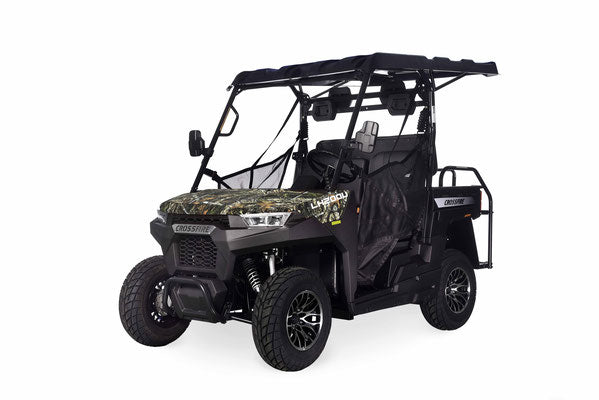

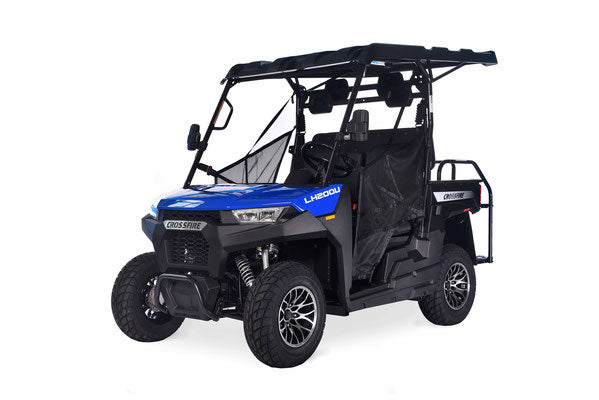

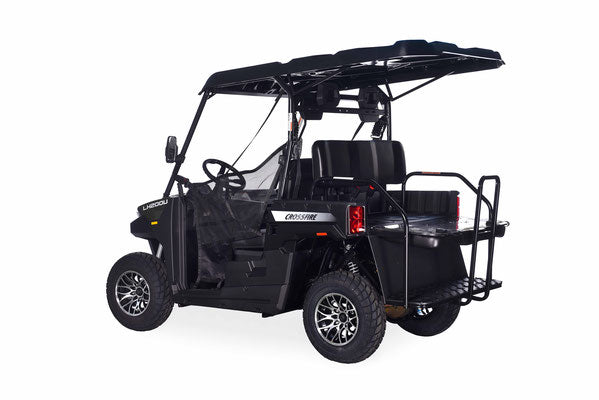

The Cross Fire 200 EFI GOLF is perfect for those who love adventure on and off the road! With its compact vehicle dimension, dry weight of 837 lbs, and top speed of 30 mph, you'll have a thrilling and comfortable ride. With a box loading capacity of 441 lbs, you can take your friends and family along for the journey. The hydraulic disk brake system and mechanical parking system ensure safety and control. Get ready to conquer roads and trails with the Cross Fire 200 EFI GOLF!
ASSEMBLY

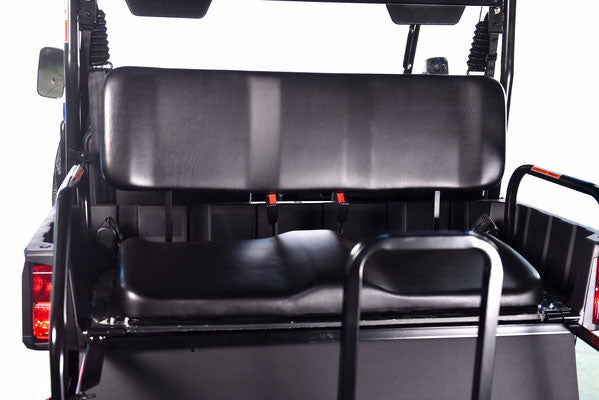

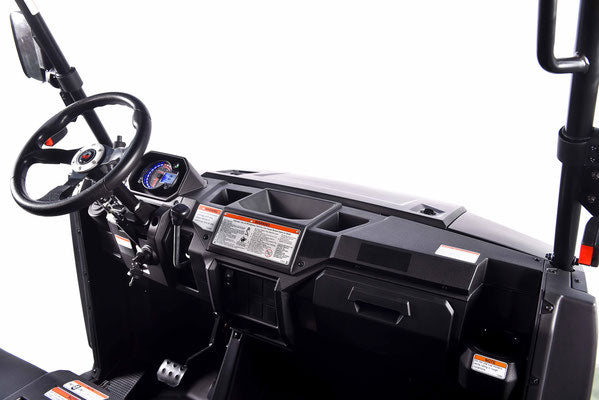

Assembly: 75% assembled - Roll cage, Controls, steering assembly, Roof, Railing, Suspension, seats, front and rear wheels and accessory installation will need to be completed to finish assembly. An estimated 3 Hours- 6 Hours will be needed to complete assembly. This vehicle should only be assembled & inspected by a professional.
FACTORY WARRANTY
Limited 30 Days All Vehicle Parts, Limited 90 Days Motor and Transmission Parts.
Vehicle specification
Overall Vehicle Size (L x W x H) inch92×57×72 in
Ground Clearance (inch) 5.5 in
Wheelbase (inch) 69.3 in
Weight with full equipment (lbs): 837.7 lbs
Front/Rear Brakes: Four Disc brake
Parking Brake: Hand-Actuated

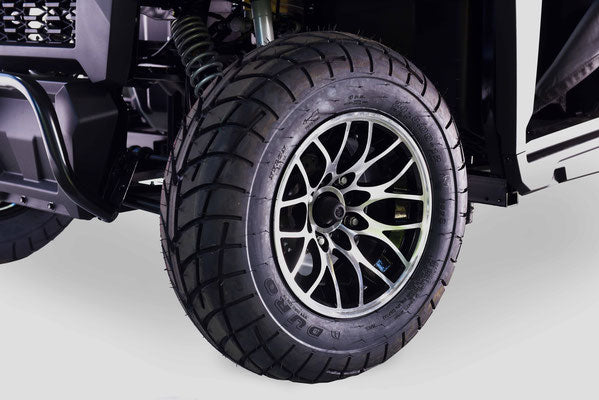

Front Tires AT22 x 7-10 / Rear Tires AT22 x 10-10

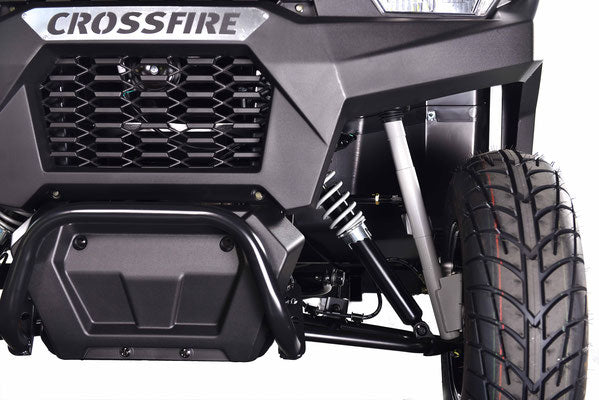

Front Suspension: Dual A-Arm
Rear Suspension: Swingarm Dual Shocks
Cargo Box Dimensions (L x W x H) inch21.8×49.6×6.5 in
Box Capacity (lbs): 441 lbs
Fuel Capacity: 3.1 gallon
Engine specification:
Cooling: Air & Oil
Engine capacity (cc): 177.3 cc
Volumetric Compression Ratio - 9.6:1
Drive System Type: 2WD
Engine Type: Single Cylinder 4-Stroke
Fuel System: Electronic Fuel Injection
Ignition type: T.C.I
Start type: Electric
Ignition Coil: ECU
Horsepower12
Transmission/Final Drive: CVT F/N/R; Chain
Maximum power (HP /r/min)12hp/7000～7500RPM
Maximum Torque (Nm /r/min)13N·m/6000～6500RPM
Top Speed (mile/h) 30 MPH
