Vitacci

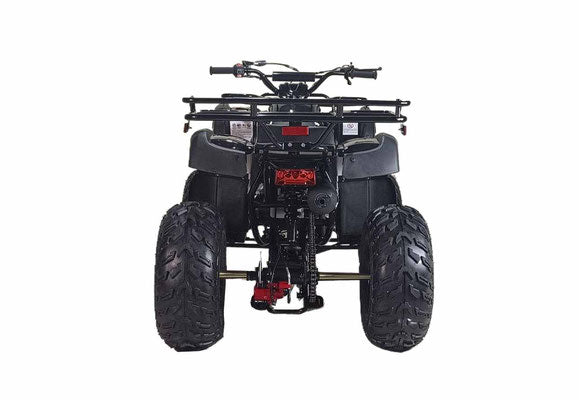

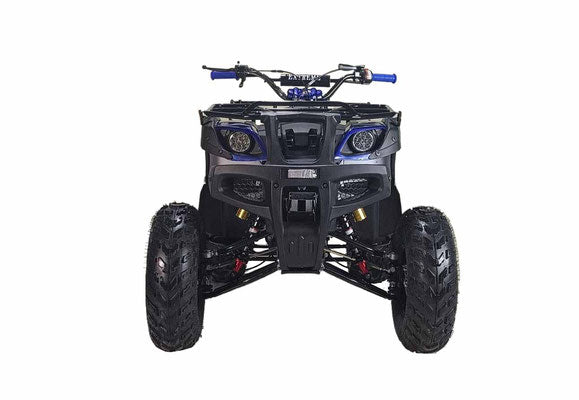

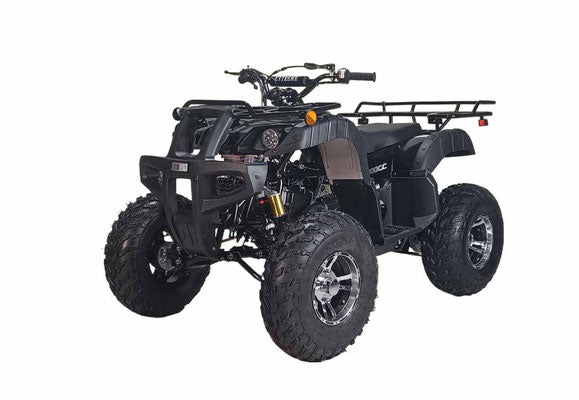

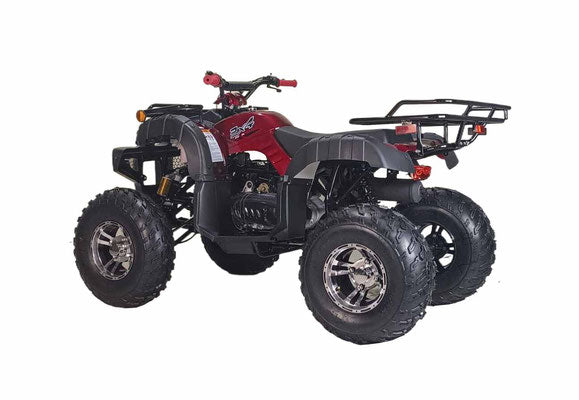

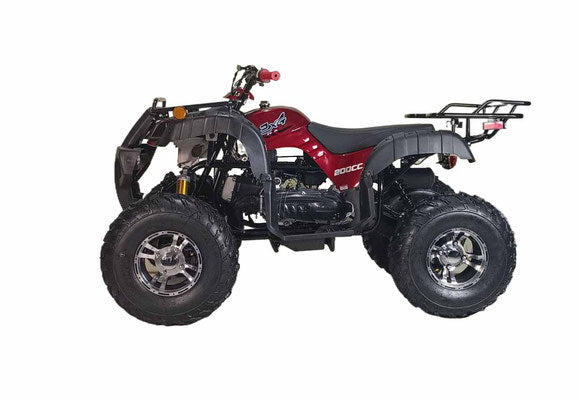

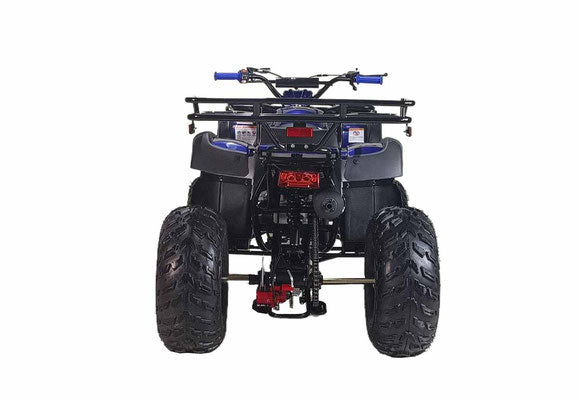

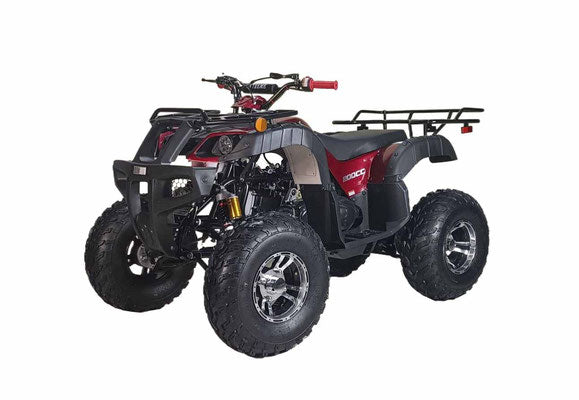

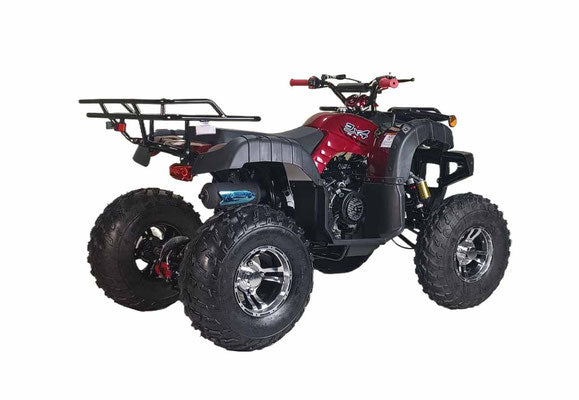

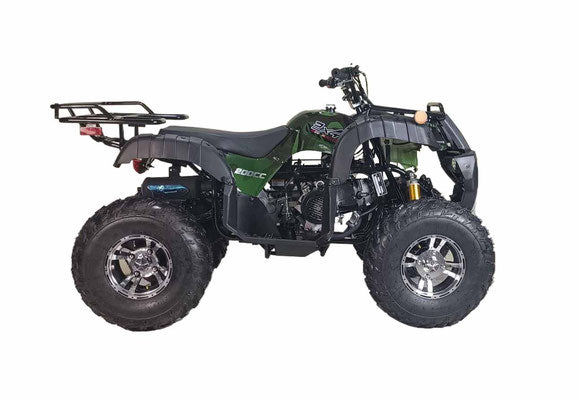

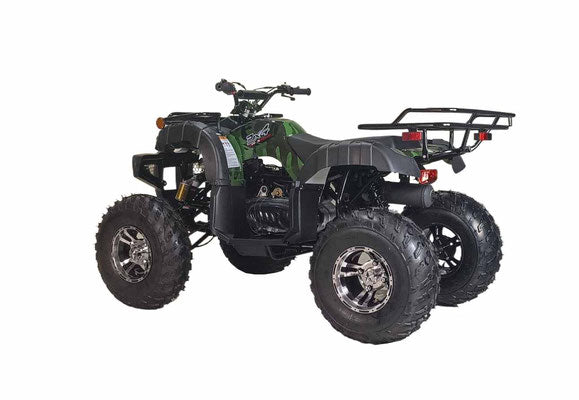

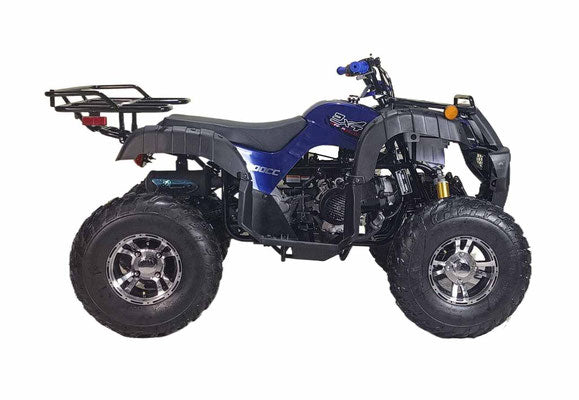

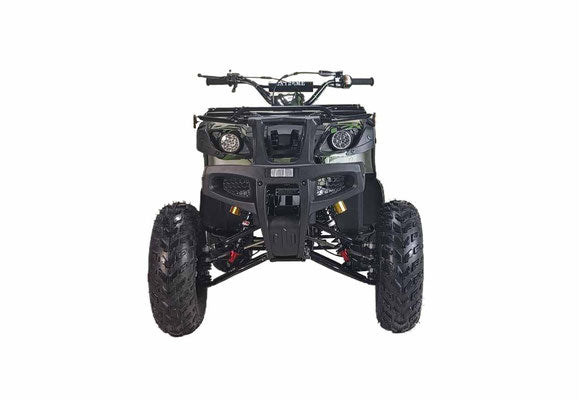

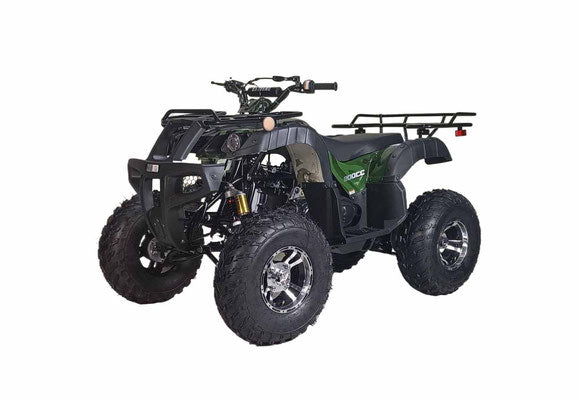

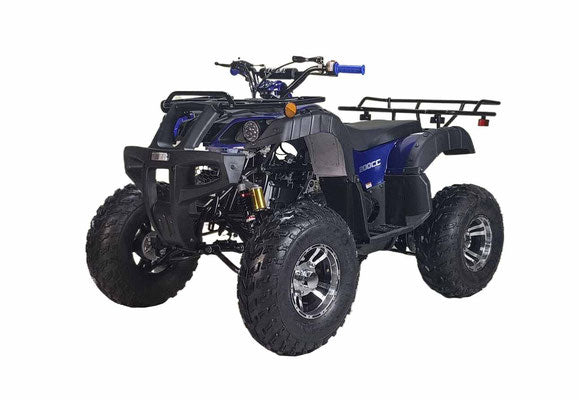

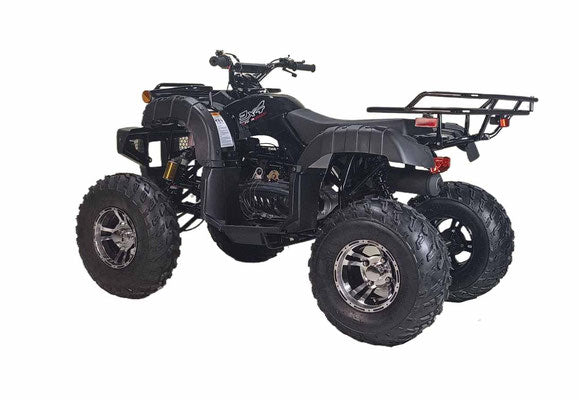

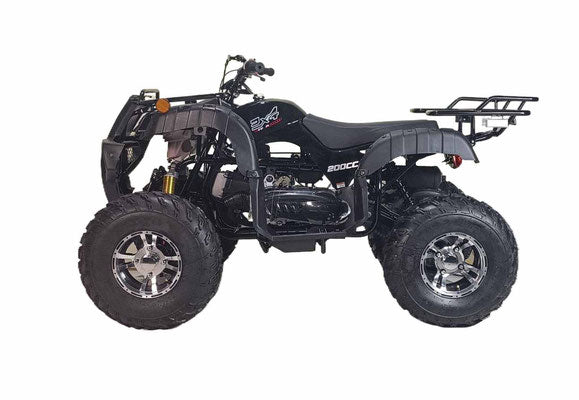

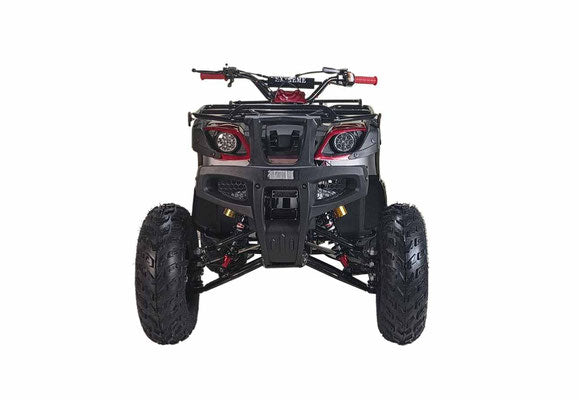

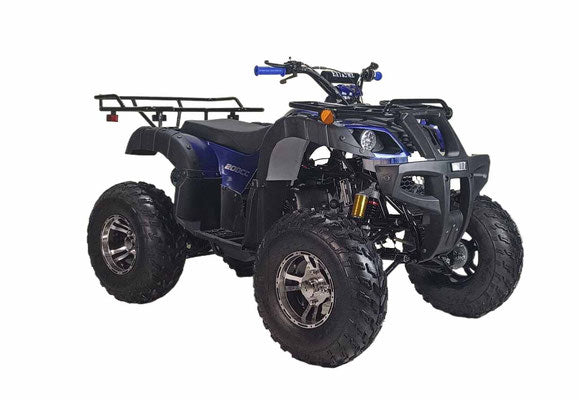

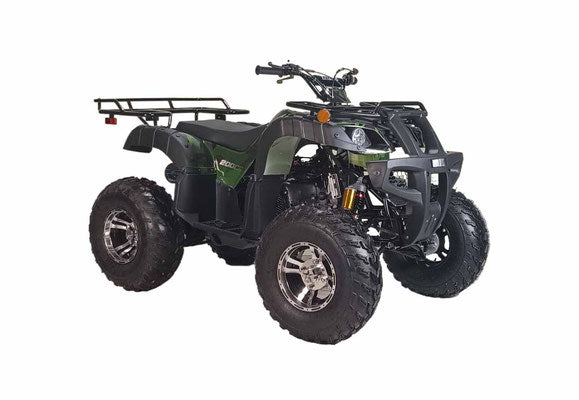

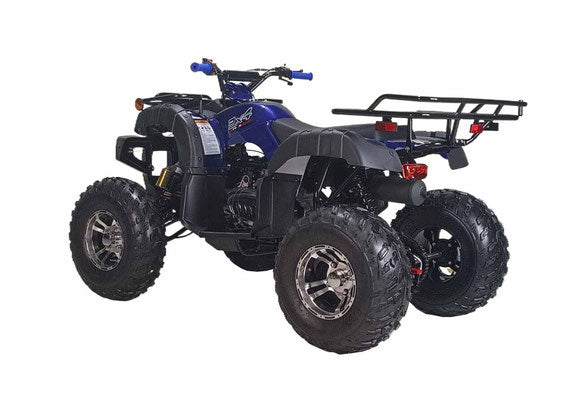

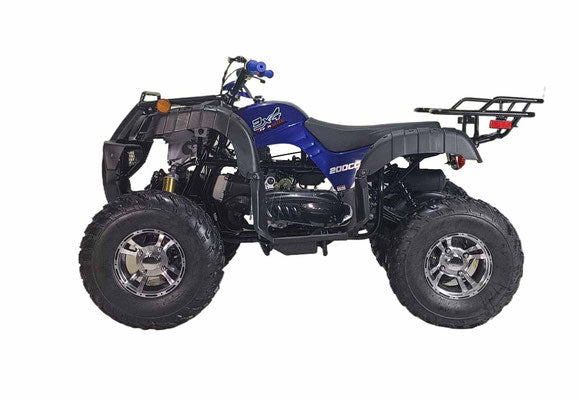

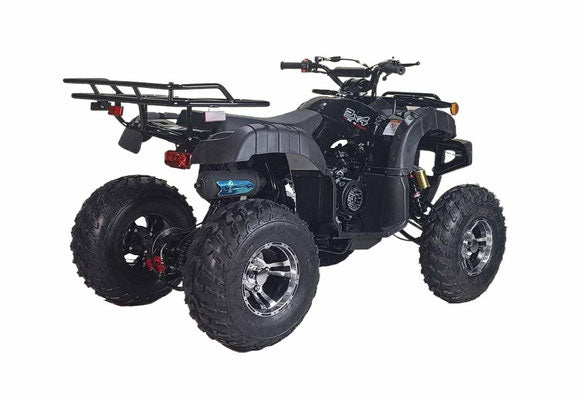

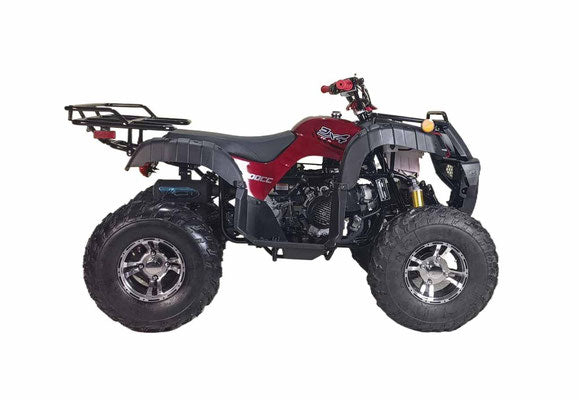

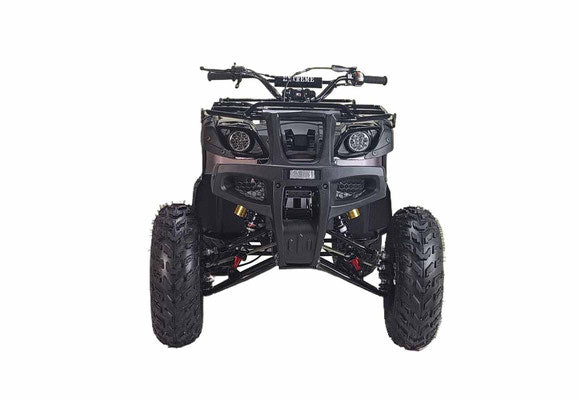

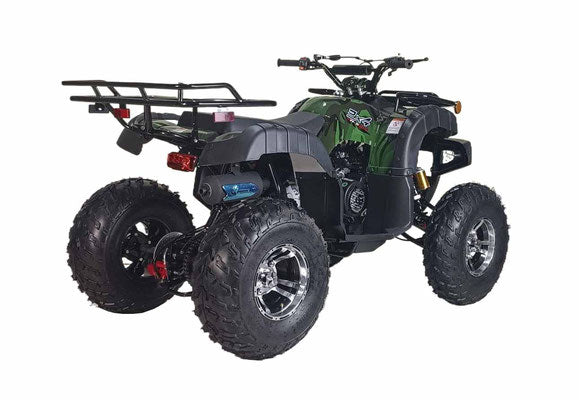

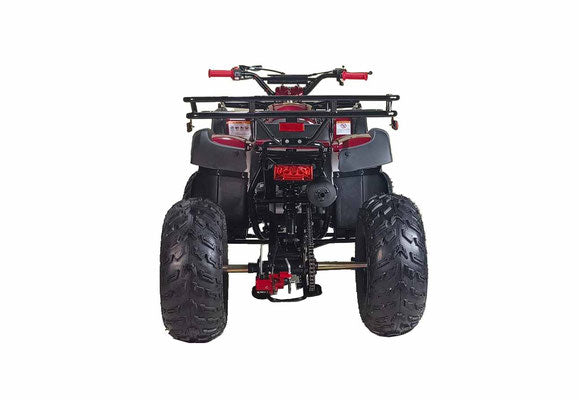

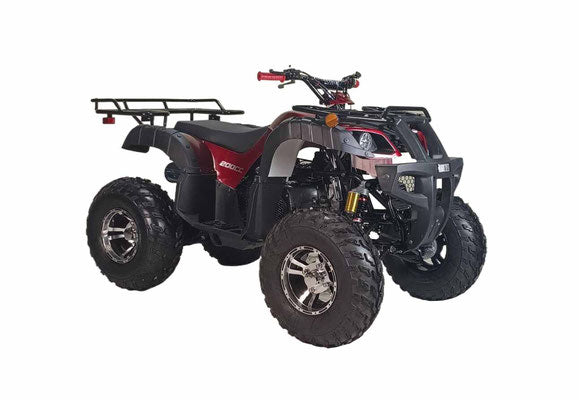

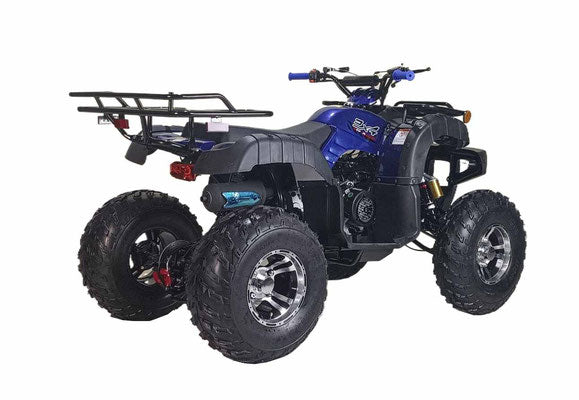

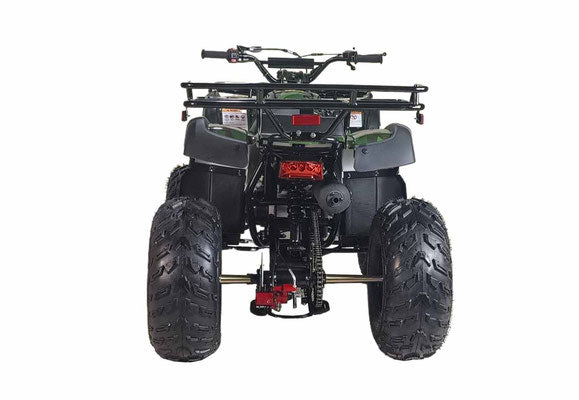

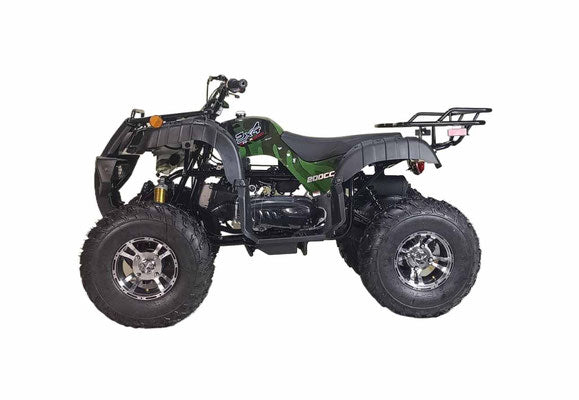

Cougar UT 200cc Utility ATV (Automatic)

Cougar UT 200cc Utility ATV (Automatic)

$1,649.90 USD
$2,199.00 USD $1,649.90 USD
Sale Sold out

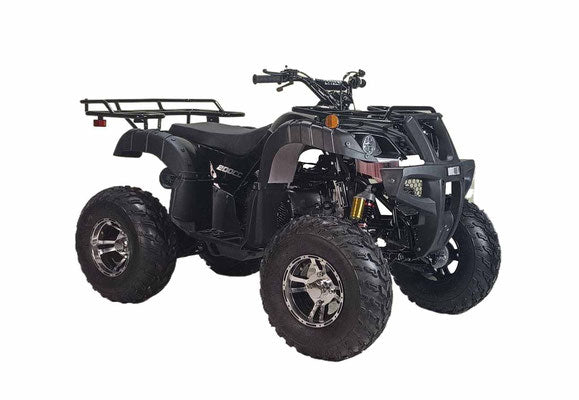

Body color: Black

The Cougar Utility 200cc is perfect for any job with its automatic transmission, cargo racks front and back, hydraulic disc brake, and aluminum alloy wheels. Get the job done easily with this capable and affordable ATV.

ASSEMBLY

Assembly: 80% assembled - front wheels, steering assembly, front and rear rear wheels and rack installation will need to be completed to finish assembly. An estimated 60 minutes - 120 minutes will be needed to complete assembly. This vehicle should only be assembled & inspected by a professional.

FACTORY WARRANTY

Limited 30 Days All Vehicle Parts, Limited 90 Days Motor and Transmission Parts.

Specifications:

ENGINE
Type 200cc,(Air cooled),4(4-stroke),(1-cylinder)
Bore x Stroke 62.5mmX57.8mm
Compression Ratio 10:01
Carburetor PD24J
Ignition CDI
Starting Time (Electric start)
Transmission (F-N-R)
Drive Train (Chain Drive)
Max. Torque 10N.m/6500r/min
Max. Power 9.1Kw/7500r/min



CHASSIS
Suspension/Front (Independent double swing arm)
Suspension/Rear (Single swing arm)
Brakes/Front (Ventilated Hydraulic disc)
Brakes/Rear (Ventilated Hydraulic disc)
Tires/Front 23 x 7-10(23x 7-10 radial)
Tires/Rear 22x 10-10(22x10-10radial)



DIMENSIONS
L x W x H 1700mmX1040mmX1100mm
Seat Height 810mm
Wheelbase 1115mm
Ground Clearance 135mm
Battery 12V/9Ah
Fuel Capacity 4.2L
Dry Weight 164KG
Max. Load 150KG
Package Size 1420mmX840mmX870mm
Loading Quantity 63/40 (63pcs/40HQ)

MAIN PERFORMANCE
Max. Speed 65km/h
Fuel Consumption 3.3L/100Km
Starting Time ≤15s
Brake distance 30km/h≤7m



AGE REQUIREMENT: 16+
